Automate your liquid cooling production at 99.5% yield
Brazing lines, thermal and pressure test systems, channel cleaning, fixtures and precision connectors, built for cold plate, UQD and CDU manufacturers.
Talk to an Engineer See the EquipmentEquipment for every stage of liquid cooling production
From welding fixtures to final leak testing, each machine is designed to work together on the same line.
Liquid cooling cases
Equipment we have built and delivered for liquid cooling manufacturers, with measured performance.

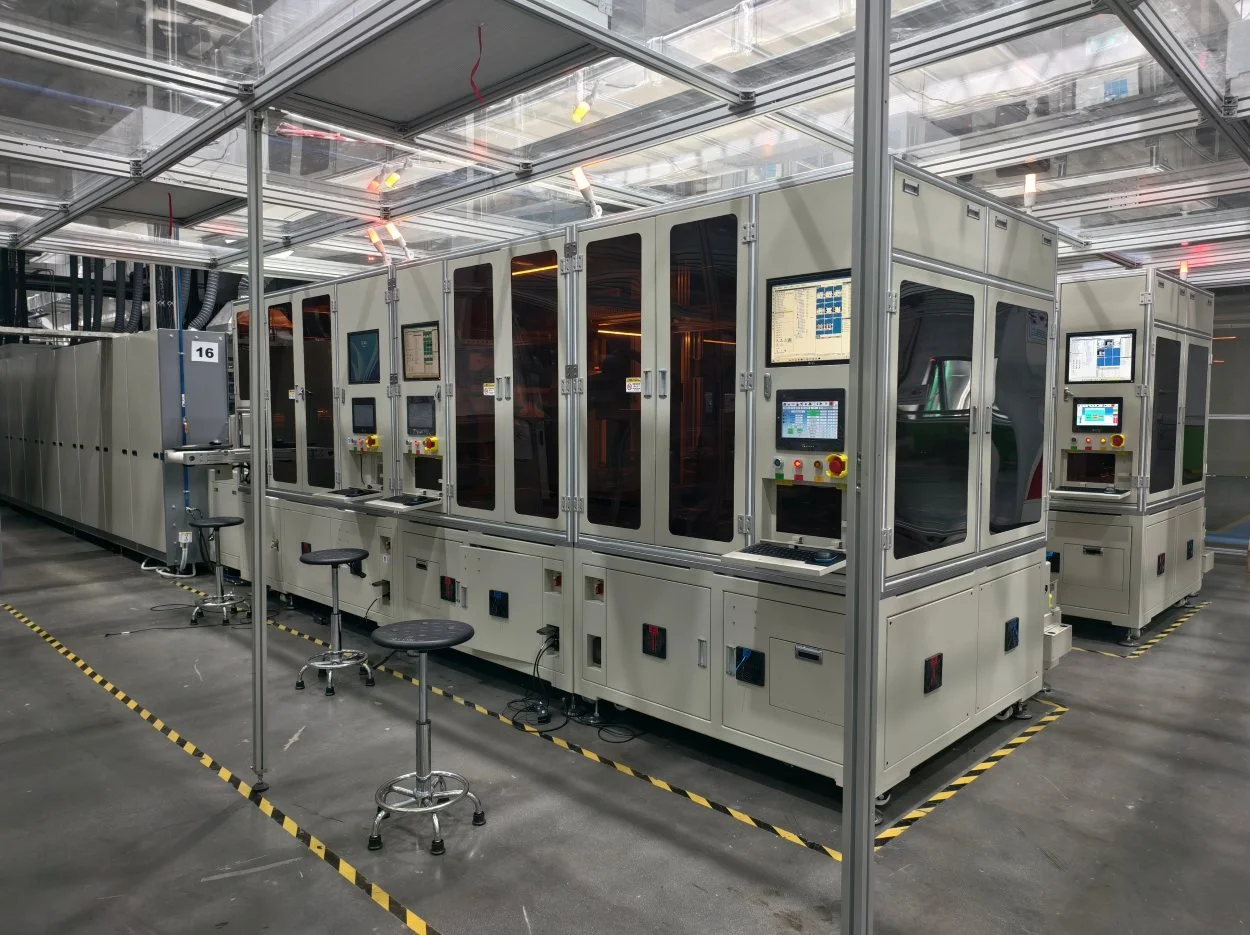

Brazing Line
Modules are assembled and loaded into furnace fixtures before brazing. After brazing, products separate from the fixtures, and the fixtures return automatically to the pre-furnace assembly station.

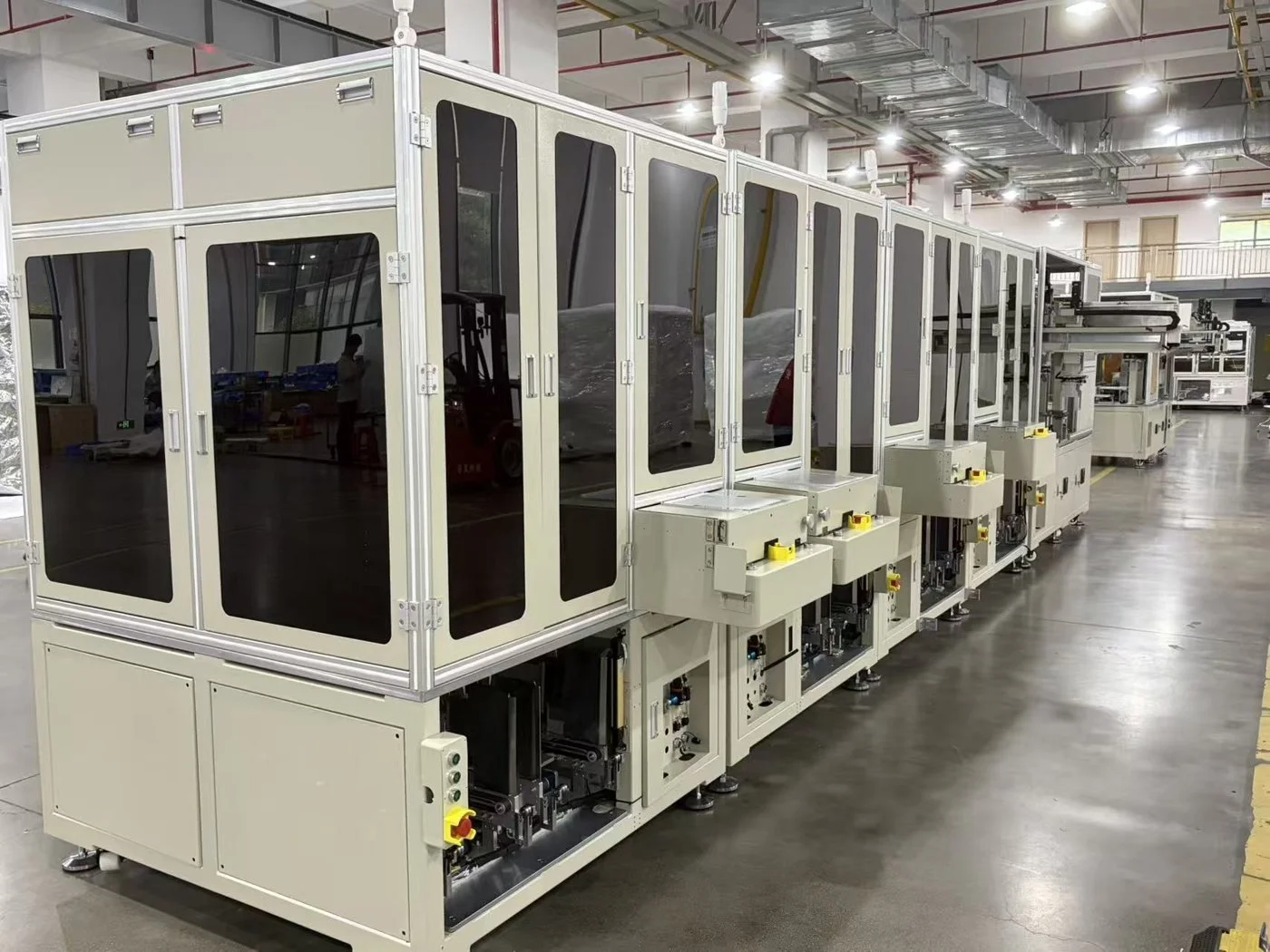

6-Station Automated Brazing Line
Automatic module assembly, brazing fixture assembly and disassembly, loading and unloading, and fixture return, for precision liquid cooling assembly and brazing.

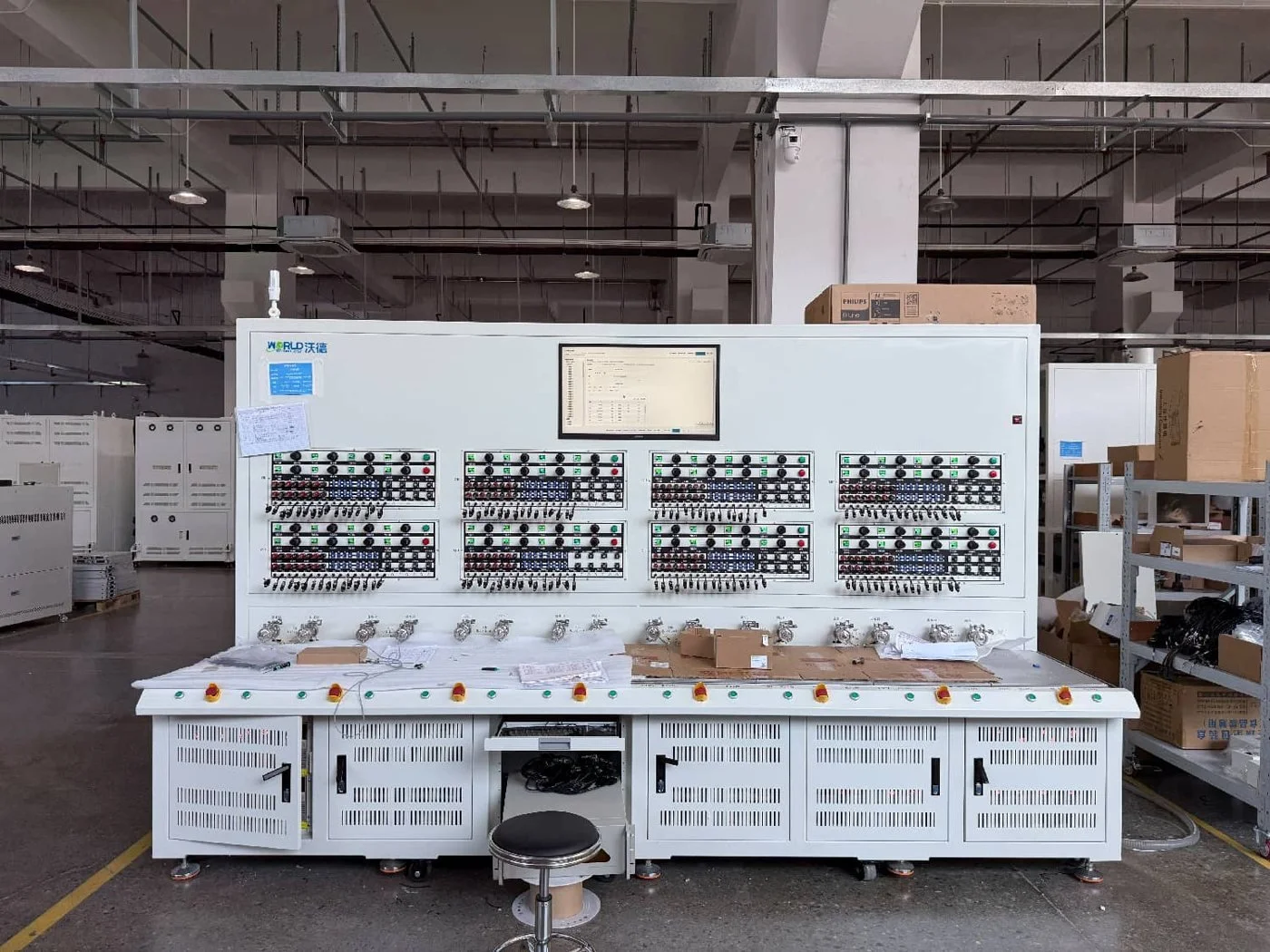

Thermal/Flow Resistance Test System
Tests cold plate flow and thermal resistance under real operating conditions, calculates results automatically and generates full test reports. Modular fixtures change over quickly between cold plate models, for both R&D validation and production.
- Closed-loop constant temperature
- Automatic PASS/FAIL
- Works with multiple coolant media
- Full test data traceability

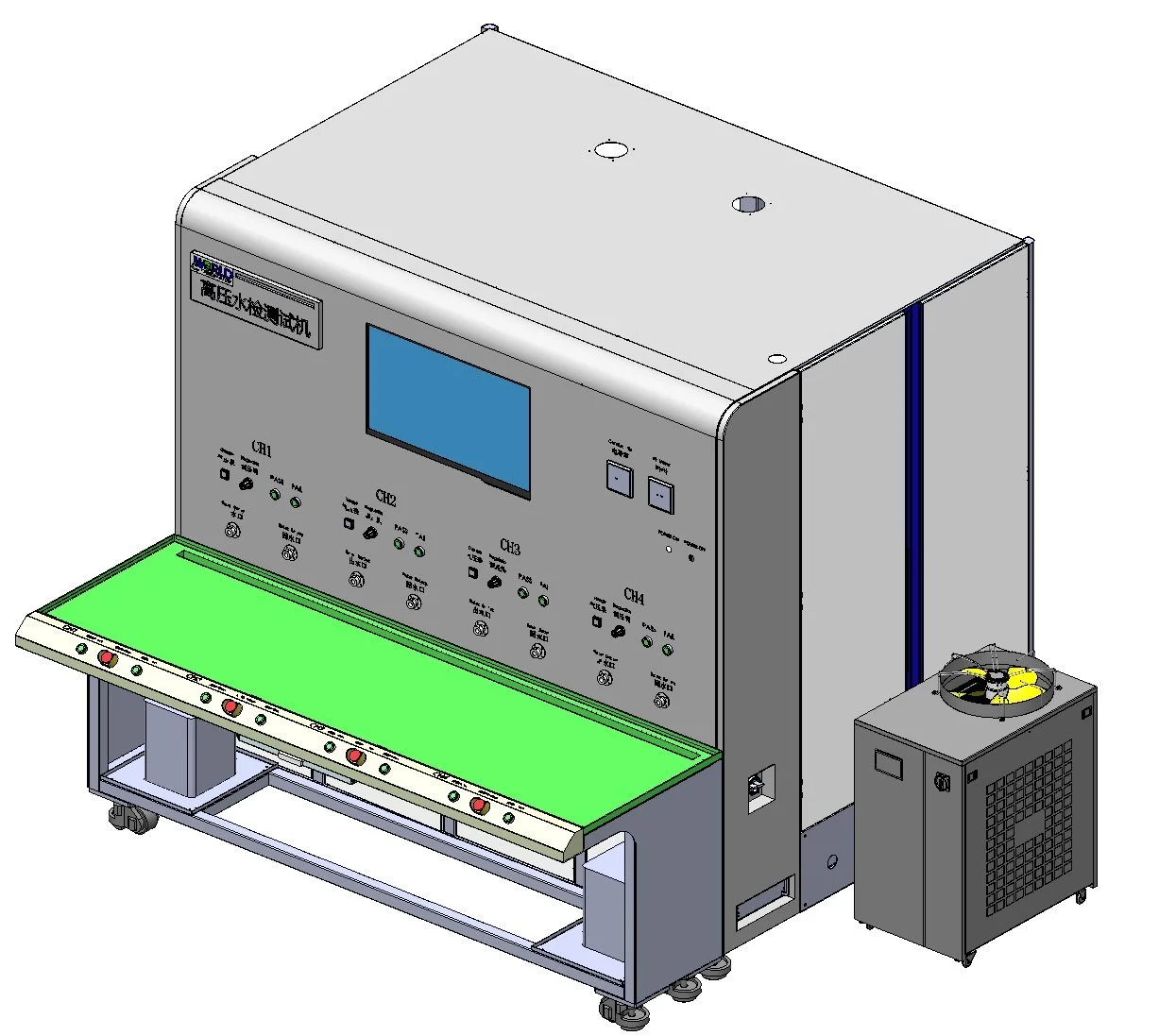

High-Pressure Water Test Machine
High-pressure leak testing with full pressure-resistance testing across direct, pulse, hold and static pressure modes.

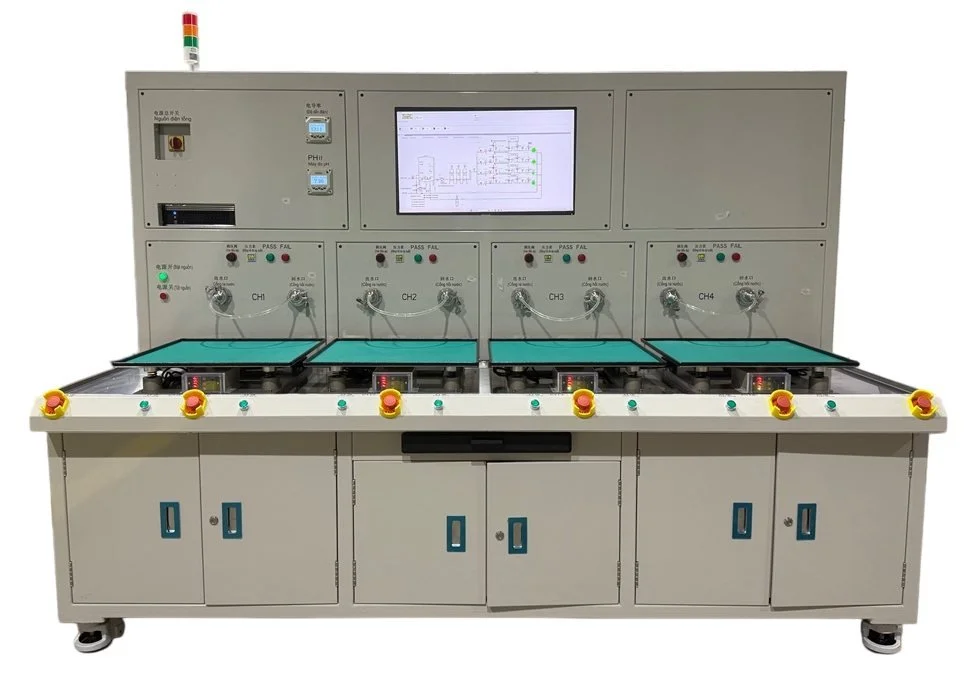

Flow Channel Cleaning Machine
Cleans the flow channels of liquid cold plates, UQD connectors and CDUs.

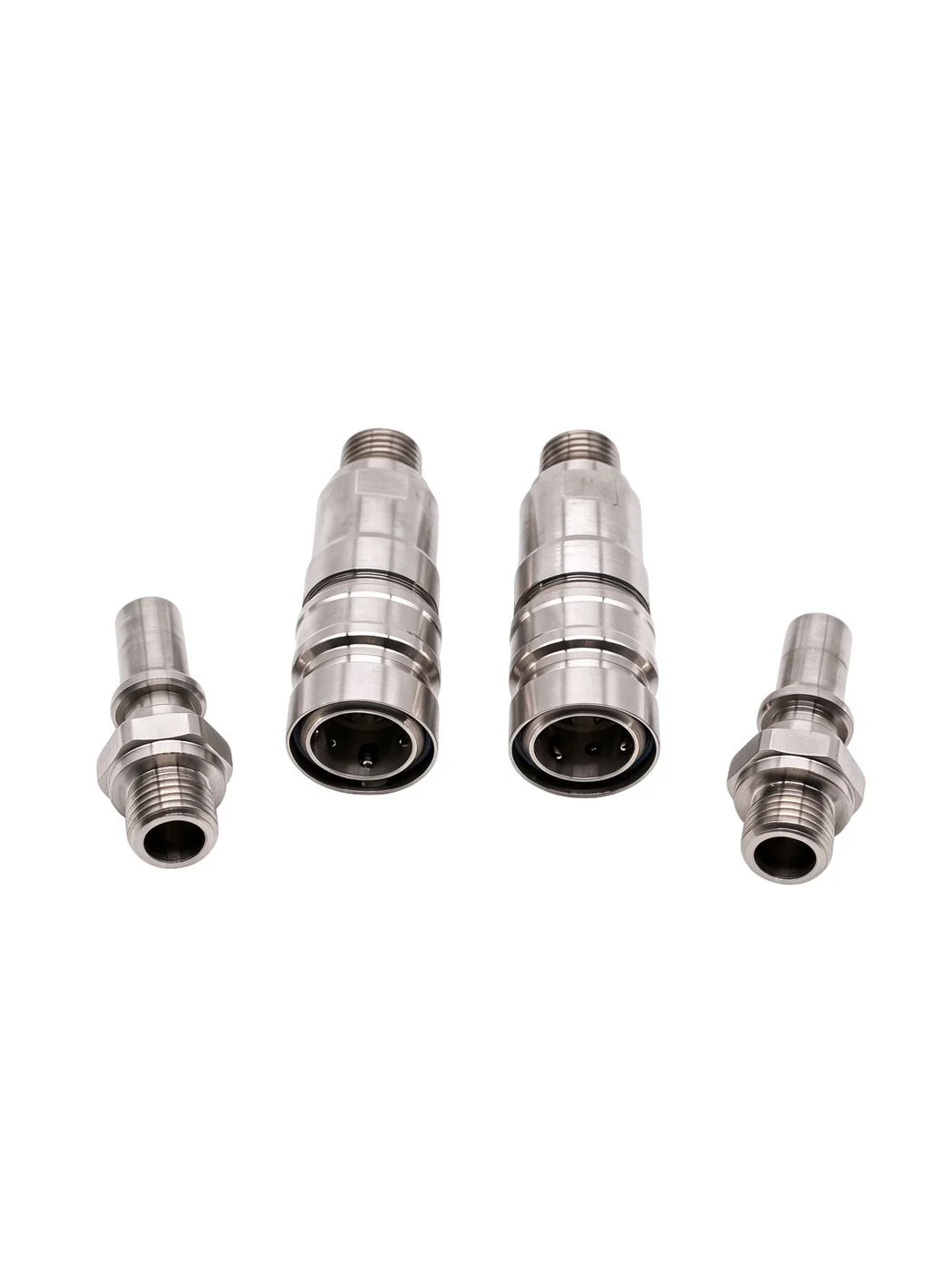

Metal Quick Disconnect Couplings (QDC)
The key connector in a liquid cooling system. The male plug inserts into the female socket and internal steel balls lock automatically; external threads at both ends connect to coolant lines for a quick, reliably sealed connection.
- CNC turn-mill, complex shapes in one setup
- Precision internal and external threads
- Steel ball holes and seal grooves
- High coaxiality for secure locking
- 100% go/no-go gauge inspection
- 100% leak testing
- Consistent batch delivery

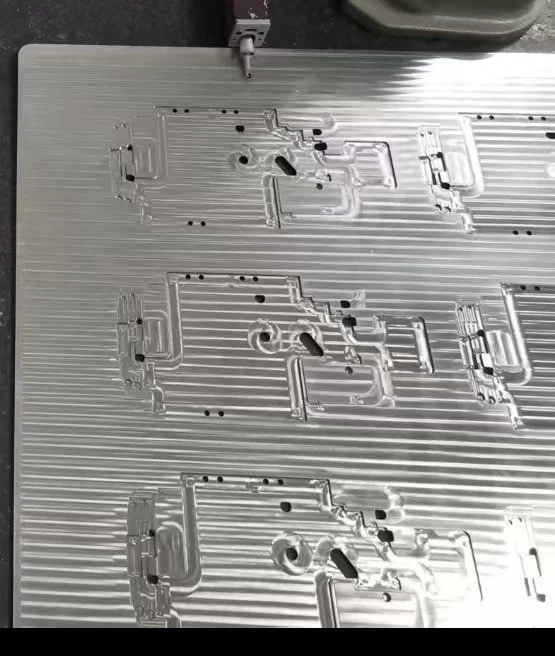

Liquid Cooling Fixtures
Lamination welding fixtures that hold liquid cooling components in position for welding, designed to match your part geometry and line.
Built by a National High-Tech Enterprise in non-standard automation
Custom, not off the shelf
Every line is engineered around your product size, cycle time and floor space.
Measured results
The yield, uptime and accuracy figures above come from equipment we have delivered.
Scale to deliver
1,000+ machines built, RMB 2.2B annual capacity, and aerospace, medical and environmental certifications.
Tell us about your liquid cooling line
Share your product and target output. An engineer will reply with a recommended equipment setup.
- Free line assessment
- Equipment matched to your cold plate, UQD or CDU
- Cycle time, yield and footprint estimates
